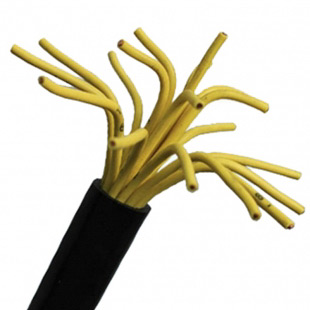

KVV PVC insulated control cable (KVV, KVV22)
Scope of application:
Suitable for wiring of control, signal, protection and measurement systems with rated voltages of 450/750V and below or 0.6/1kV and below.
Control cable: cable signal for power supply on residential and commercial building and industrial control facility circuits
Automatic control cable: Control signals are transmitted between equipment for residential, commercial, and security installations, as well as to prevent inter-core interference and external noise.
Features:
● The long-term allowable operating temperature of the cable conductor is 70 ° C
● The cable should be laid at a temperature not lower than 0 °C. If the ambient temperature is lower than 0 °C, the cable should be preheated.
● The recommended bending radius of the cable is as follows:
For cables without armor, it should be no less than 6 times the outer diameter of the cable.
For cables with armor or copper tape shielding structure, it should be no less than 12 times the outer diameter of the cable.
For flexible cables with shield structure, it should be no less than 6 times the outer diameter of the cable.
Product Standards:GB/T9330-2008
Brand:Asian port
Model number:KVV, KVV22, KVVP2_22
Conductor material:Copper oxide free core (copper content: 99.99%)
Number of cores:2-61
Insulation Materials:PVC
Rated voltage:450/750V
colour:Red yellow blue green gray brown black
Structure diagram >>
PVC insulated and sheathed control cables provide the ability to prevent interference between cores and excellent external noise immunity for precision, advanced control equipment and signal equipment.
There are many types of PVC insulated and sheathed control cables, and the range of products for different models is different.
Structure diagram>>
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
model
product name
Voltage V
Number of cores
Specifications (mm2)
Main scope of application
KVV
Copper core PVC insulated PVC sheathed control cable
450/750
2-61
0.75-10
Laid indoors, cable trenches, pipes, etc.
KVV22
Copper core PVC insulated and sheathed copper tape armored control cable
Laid in indoors, cable trenches, direct buried pipes, etc., can be used to withstand large mechanical external forces.
KVVR
Copper core PVC insulated PVC sheathed control flexible cable
Laid indoors, where there are movement requirements
ZRKVV
Flame-retardant copper core PVC insulated PVC sheathed control cable
Laid indoors, cable trenches, pipes, etc.
ZRKVV22
Cu core PVC insulated PVC sheathed braided steel tape armored control cable
Laying in indoors, cable trenches, direct buried pipes, etc. can be used to withstand large mechanical external forces and have flame retardant requirements.
ZRKVVR
Copper core PVC insulated PVC sheathed braided control cable
Laid indoors, where there are moving and flame retardant requirements
