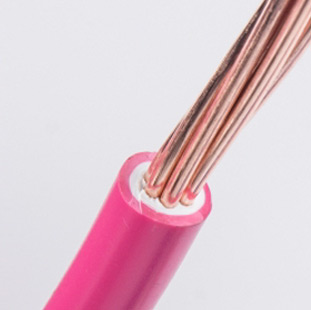

BVV fixed-sheathed cable (ZR-BVV, NH-BVV)
Scope of application:
This product is suitable for power units and household appliances with AC voltages of 300/500V and below. It can also be used for surface mounted wires.
Features:
Long-term allowable operating temperature: no more than 70 °C fixed laying cable (wire) laying temperature is not lower than 0 °C.
BVV has one more sheath than BV.
Divided into ordinary, flame retardant, fireproof three.
Insulation: Used in residential and commercial building and industrial distribution circuits (BVV).
Flame retardant: Targeted to prevent 2 fire spreads (ZR-BVV).
Refractory: for fire protection systems (NH-BVV)
Implementation standards:
JB/T5023-2008 IEC 227-1:1993 JB/T8734-2012
Brand:
Asian port
Model number:
BVV, ZR-BVV, NH-BVV
Conductor material:
Copper oxide free core (copper content: 99.9%)
Number of cores:
1-5
Insulation Materials:
Polyvinyl chloride
Specifications:
0.75~185mm²
Rated voltage:
300/500V
colour:
Red yellow Yellow green bicolor Blue Green Black
BVV wire full name copper core PVC insulated polyethylene sheathed round cable, also known as light PVC sheathed cable, commonly known as hard sheathed wire.
model
Rated voltage (V)
Number of cores
Nominal cross section (mm2)
Long-term working temperature (°C)
227IEC10(BVV)
300/500
2-5
1.5~35
70
Structure diagram >>
The insulation material and sheath material of BVV wire are all polyvinyl chloride. According to the different performance, the product can be divided into three categories: insulation, flame retardant and fireproof. Different classification uses are different.
Model
Name
Number of cores
Nominal cross section (mm2)
use
BVV
Copper core PVC insulated and sheathed round sheathed wire;
Referred to as lightweight PVC sheathed cable;
Commonly known as hard sheathed wire;
1 core is 0.75-185
Multi-core is 1.5-35
1-5
Powerplants, household appliances, instruments, telecommunications equipment and surface mounted wires
ZR-BVV
Flame-retardant copper core PVC insulated PVC sheathed round sheath
1 core is 0.75-185
Multi-core is 1.5-35
1-5
Electrician, instrumentation, telecommunication equipment, power equipment and lighting lines for flame retardant applications are fixedly laid.
NH-BVV
Refractory PVC insulated PVC sheathed roundwire
1 core is 0.75-185
Multi-core is 1.5-35
1-5
Control, monitoring loops, power, line protection and other occasions as well as large-scale construction, petroleum, metallurgy, chemical, ship, personnel intensive industries
A place with high flame retardant and fire resistance requirements.
Implementation standards:
JB/T5023-2008 IEC 227-1:1993 JB/T8734-2012
Brand:
Asian port
Model number:
BVV, ZR-BVV, NH-BVV
Conductor material:
Copper oxide free core (copper content: 99.9%)
Number of cores:
1-5
Insulation Materials:
Polyvinyl chloride
Specifications:
0.75~185mm²
Rated voltage:
300/500V
colour:
Red yellow Yellow green bicolor Blue Green Black
model
Rated voltage (V)
Number of cores
Nominal cross section (mm2)
Long-term working temperature (°C)
227IEC10(BVV)
300/500
2-5
1.5~35
70
Model
Name
Number of cores
Nominal cross section (mm2)
use
BVV
Copper core PVC insulated and sheathed round sheathed wire;
Referred to as lightweight PVC sheathed cable;
Commonly known as hard sheathed wire;
1 core is 0.75-185
Multi-core is 1.5-35
1-5
Powerplants, household appliances, instruments, telecommunications equipment and surface mounted wires
ZR-BVV
Flame-retardant copper core PVC insulated PVC sheathed round sheath
1 core is 0.75-185
Multi-core is 1.5-35
1-5
Electrician, instrumentation, telecommunication equipment, power equipment and lighting lines for flame retardant applications are fixedly laid.
NH-BVV
Refractory PVC insulated PVC sheathed roundwire
1 core is 0.75-185
Multi-core is 1.5-35
1-5
Control, monitoring loops, power, line protection and other occasions as well as large-scale construction, petroleum, metallurgy, chemical, ship, personnel intensive industries
A place with high flame retardant and fire resistance requirements.
